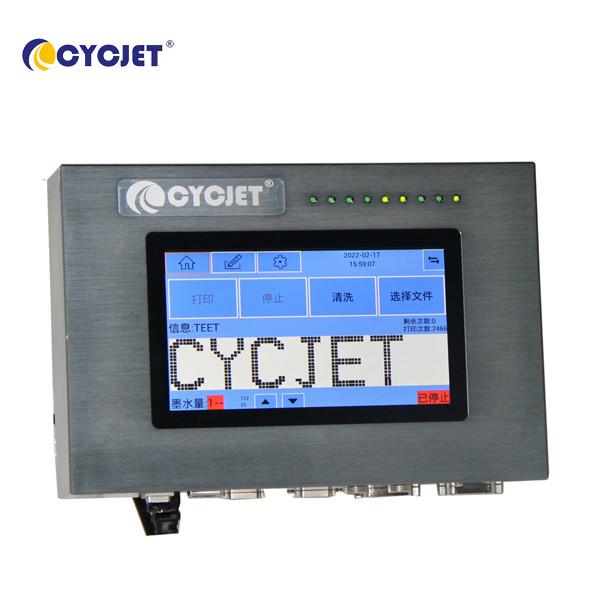

DOD D32L 120mm Large Character Automatic Inkjet Printer for Anti-corrosion Steel Tube Inkjet Coding Machine
Description
CYCJET D Serial DOD large character inkjet printer is well-known in the construction industry, packaging industry, and steel structure industry. Its special printhead system can drive a max of 4 heads by one controller and can supply 7 dots, 16 dots, 32 dots head. Customized data cable & ink pipe available. Moreover, prevent clogging and fast clean function to keep printer suitable for a long time running within a hostile environment. More importantly, the ink system of this inkjet coding machine has its own alarm system. When lacking ink, it will trigger, could remind users promptly to guarantee printer continues printing a long time. The large character inkjet coding machine could print on concrete products, pipes, cartons, woods, plastic, aluminum foils, cardboard boxes, stones, etc. 302x240STN screen makes complete printing contents available for review. It not only can print logos, batch numbers, serial numbers, shift numbers, special marks but also can print count numbers, available to set starting numbers and end numbers.
Advantage & Sell Points
- Reversal & rotation printing
- Sensor or Encoder drive printing
- Continue repeat printing
- 6.25-45DPI & Bold font Printing
- 5x5,7x5,9x6,12x8, 16x12 printing
- Can print on metal, plastic, wood, aluminum foil, cardboard boxes, stone, pipe, cable
- Batch number, serial number, count number printing, available to set starting number and end number
Technical Parameters
| 1 | Print Height | 32 dots (Model: D32L): Max 120mm font height, Max four lines printing |
| 2 | Print Spacing | 8—10mm |
| 3 |
Basic configuration | printing max two lines of numbers, or English, all the national standard database of Chinese characters and English letter, self- simple graphics, the machine without external gas source, free
warranty for one year. |
| 4 | Print Speed | 80m/min |
| 5 | Software Function | Real-time clock date, product counting, frequency |
| 6 | Operation Function | English operation system, Delay in printing, the font width, font height, orientation, self-cleaning, sensor settings. |
| 7 | Print Content | Real Date, Real time, Letter, Shift group, Serial number, Batch number, Lot number can be free print. |
| 8 | Print Direction | Upward printing, downward printing, side printing (360°direction
printing) |
| 9 | Operator Interfaces | Image-style & Chinese or English menu, what you see is what you get. |
| 10 | Memory Function | More than 60pcs text can be storage |
| 11 |
Ink Color |
Black, Red, Yellow, Blue, white, |
| 12 | Protection level | Not suitable for high dust, high humidity working environment |
| 13 | Powder | AC220V±10%, 50 -60HZ, 5 W; |
| 14 | Humidity Range
Temperature Range | 10-90% Non-condensing
5-40°C |
| 15 | Others | No need to connect external compressed air, and no need thinner (i.e.
solvent) |
Details Image
Printing Effects
About Us
FAQ
Q1. What this large character inkjet printer can print?
A: It can print mfg&exp date, batch number, text, logo etc.
Q2. What materials this large character inkjet printer can print?
A: It can print all materials, like paper, carton, plastic, metal, wood, steel, pipe, bottle etc.
Q3. Are you a factory or a trading company?
A: We have our own factory and we can offer OEM production according to your demand.
Q4. Can you send me the video to show how the machine works?
A: Certainly, we have made videos of every machine and for different uses.
Q5. How can I know your machine works well?
A: Before delivery, we have tested every inkjet printer machine and adjusted it to the best condition. If you have special production condition, we could also adjust the machine for you.
