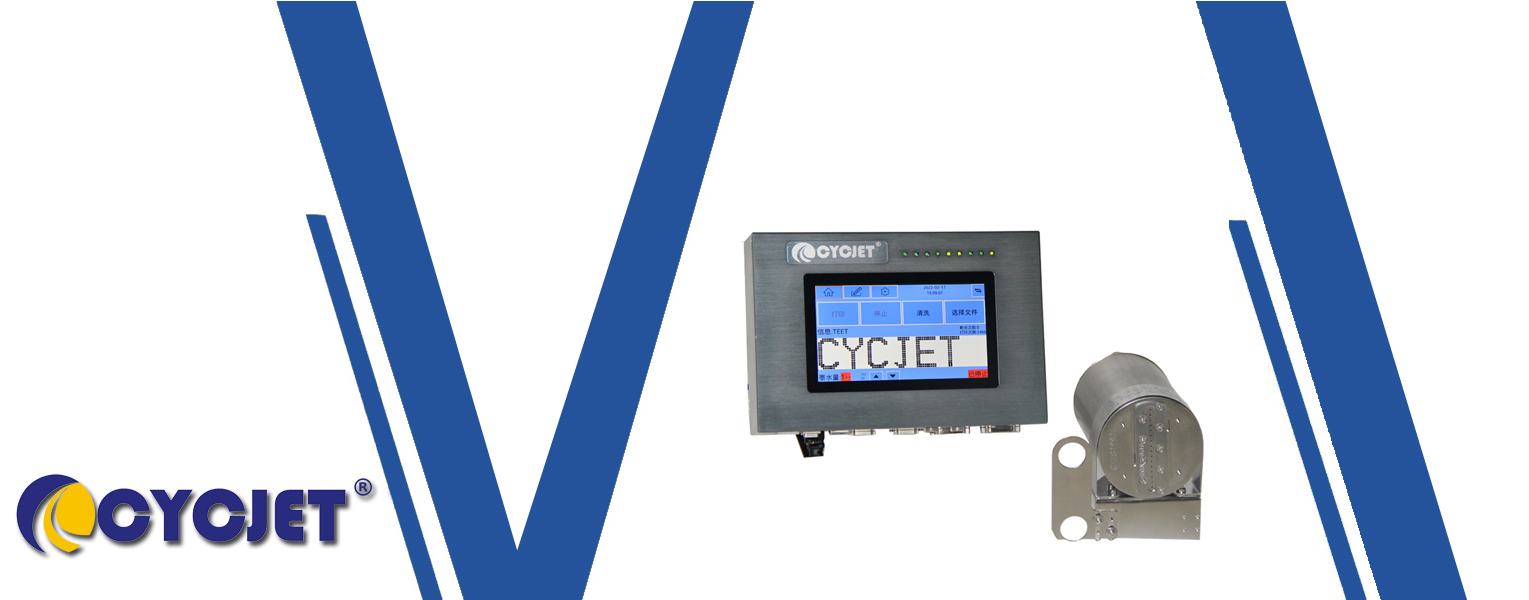

D32L 120mm Large Character inkjet printer DOD Industrial Coding Printer for Plywood Printing
Description
CYCJET DOD Large Character Inkjet coding and marking systems for texts, dates or logos are available in printing heights up to 120 mm for each print head. For larger printings several print heads can be combined.
The resolution meets the requirements of virtually all industrial applications for marking and coding. These large character systems, with 7-, 16- or 32-nozzles print heads are easy to use, robust and due to the modular construction of the system components, highly flexible.
Advantage & Sell Points
- Reversal & rotation printing
- Sensor or Encoder drive printing
- Continue repeat printing
- 6.25-45DPI & Bold font Printing
- 5x5,7x5,9x6,12x8, 16x12 printing
- Can print on metal, plastic, wood, aluminum foil, cardboard boxes, stone, pipe, cable
- Batch number, serial number, count number printing, available to set starting number and end number
Technical Parameters
| 1 | Print Height | 32 dots (Model: D32L): Max 120mm font height, Max four lines printing |
| 2 | Print Spacing | 8—10mm |
| 3 |
Basic configuration | printing max two lines of numbers, or English, all the national standard database of Chinese characters and English letter, self- simple graphics, the machine without external gas source, free
warranty for one year. |
| 4 | Print Speed | 80m/min |
| 5 | Software Function | Real-time clock date, product counting, frequency |
| 6 | Operation Function | English operation system, Delay in printing, the font width, font height, orientation, self-cleaning, sensor settings. |
| 7 | Print Content | Real Date, Real time, Letter, Shift group, Serial number, Batch number, Lot number can be free print. |
| 8 | Print Direction | Upward printing, downward printing, side printing (360°direction
printing) |
| 9 | Operator Interfaces | Image-style & Chinese or English menu, what you see is what you get. |
| 10 | Memory Function | More than 60pcs text can be storage |
| 11 |
Ink Color |
Black, Red, Yellow, Blue, white, |
| 12 | Protection level | Not suitable for high dust, high humidity working environment |
| 13 | Powder | AC220V±10%, 50 -60HZ, 5 W; |
| 14 | Humidity Range
Temperature Range | 10-90% Non-condensing
5-40°C |
| 15 | Others | No need to connect external compressed air, and no need thinner (i.e.
solvent) |

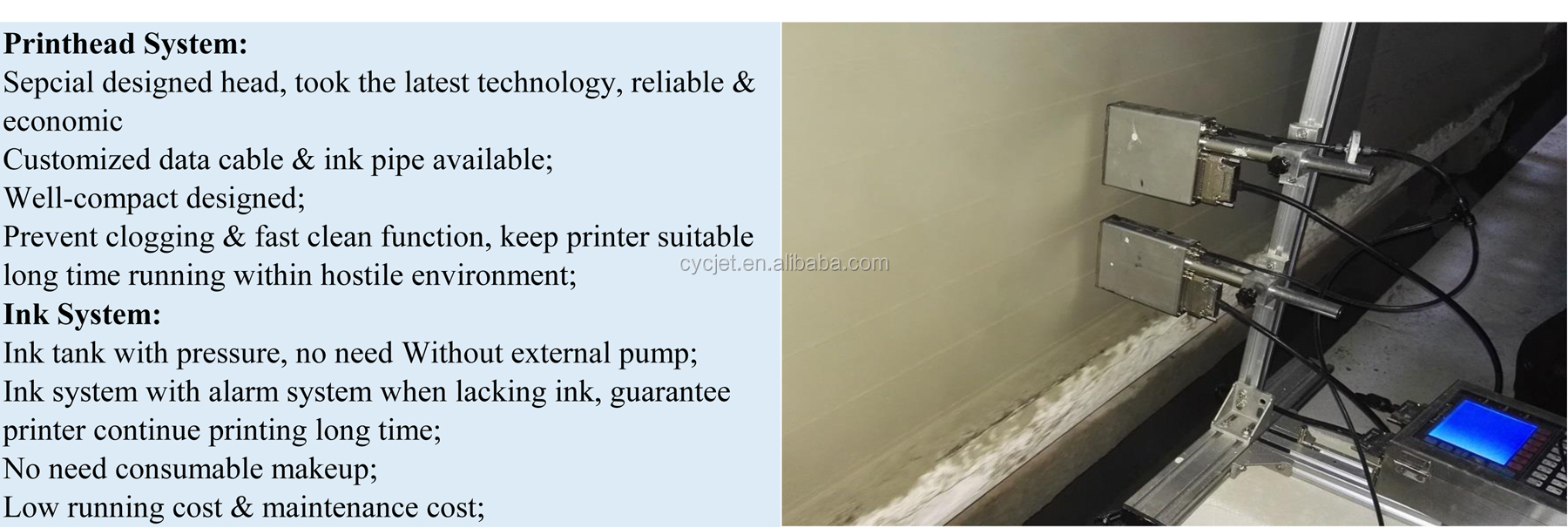

Details Image
Printing Effects
About Us
FAQ
Q1. What this large character inkjet printer can print?
A: It can print mfg&exp date, batch number, text, logo etc.
Q2. What materials this large character inkjet printer can print?
A: It can print all materials, like paper, carton, plastic, metal, wood, steel, pipe, bottle etc.
Q3. Are you a factory or a trading company?
A: We have our own factory and we can offer OEM production according to your demand.
Q4. Can you send me the video to show how the machine works?
A: Certainly, we have made videos of every machine and for different uses.
Q5. How can I know your machine works well?
A: Before delivery, we have tested every inkjet printer machine and adjusted it to the best condition. If you have special production condition, we could also adjust the machine for you.
